Vista Engineering - TPT-STST - Two Part Ties - 300mm - 450mm - BOX/100 - BOX/200

General:

The item you are purchasing is for 1x Box of 100 - 200 Two Part Tiles @ 300mm - 450mm (TPT-STST)

Description & Application:

Vista Engineering's two-part general-purpose wall tie is used in small commercial buildings and domestic properties. Suitable for buildings with a maximum height of 15M and cavity widths from 150-375mm. The Vista two-part tie allows larger cavities to be spanned. (Type 2 Wall Tie)

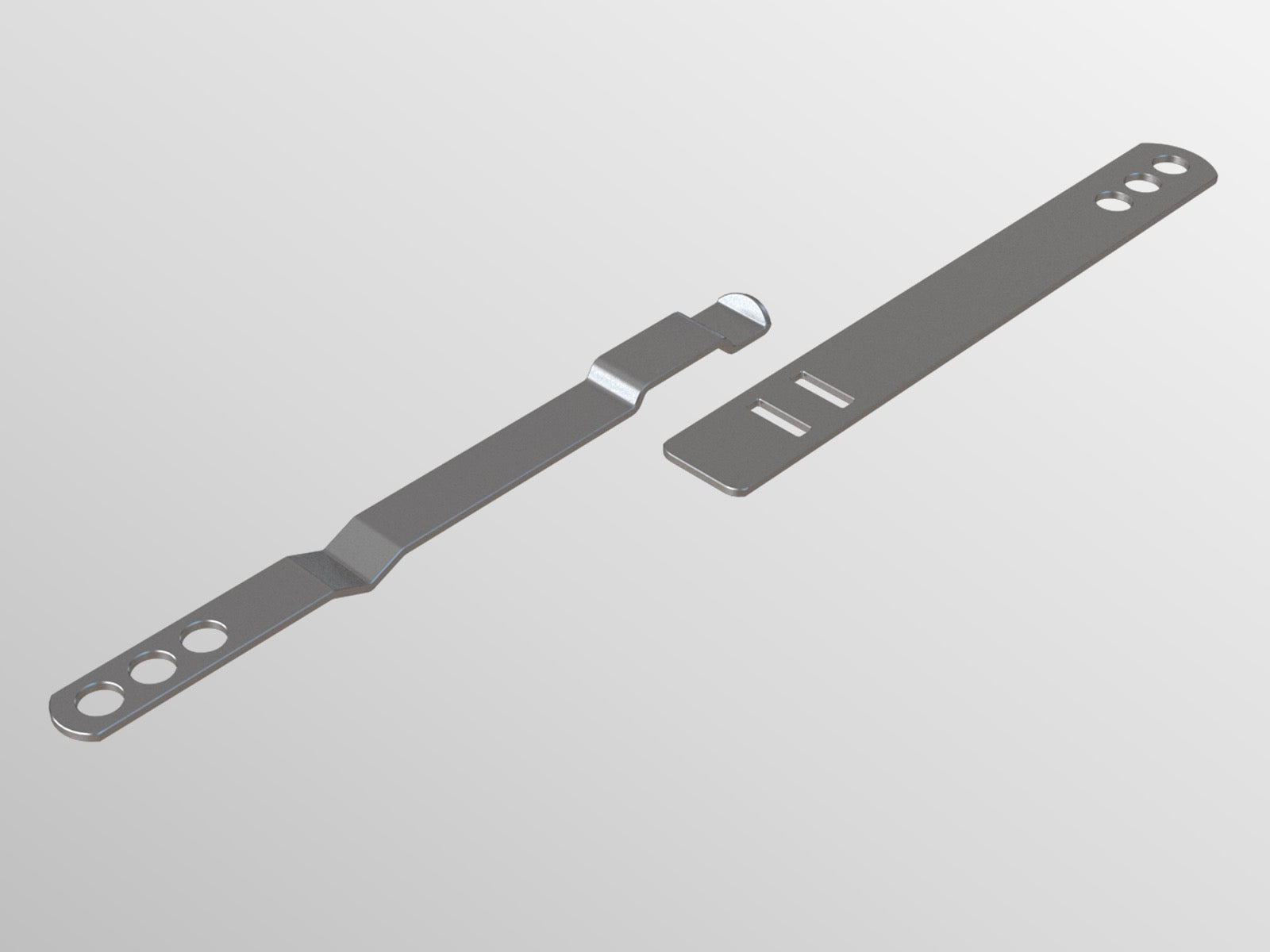

Design - Two-part wall ties allow larger cavities (150mm to 375mm) to be spanned. They replaced long single ties whose weight sometimes caused them to overturn. The wider, flat section is built into the inner leaf as construction proceeds. The narrow section, with a V drip is then locked into the wider section and built into the outer leaf as it lifts. The design of the new interlocking mechanism makes it easier to connect two tie components as the lead is built.
Material - Manufactured from grade 304 stainless steel
Behavior in relation to fire - Non combustible
Durability - Excellent corrosion resistance and a service life of not less than 60 years.
Compliance - Tested as Type B (Sound) and as Type 2 (Strength) to BS EN 845-1

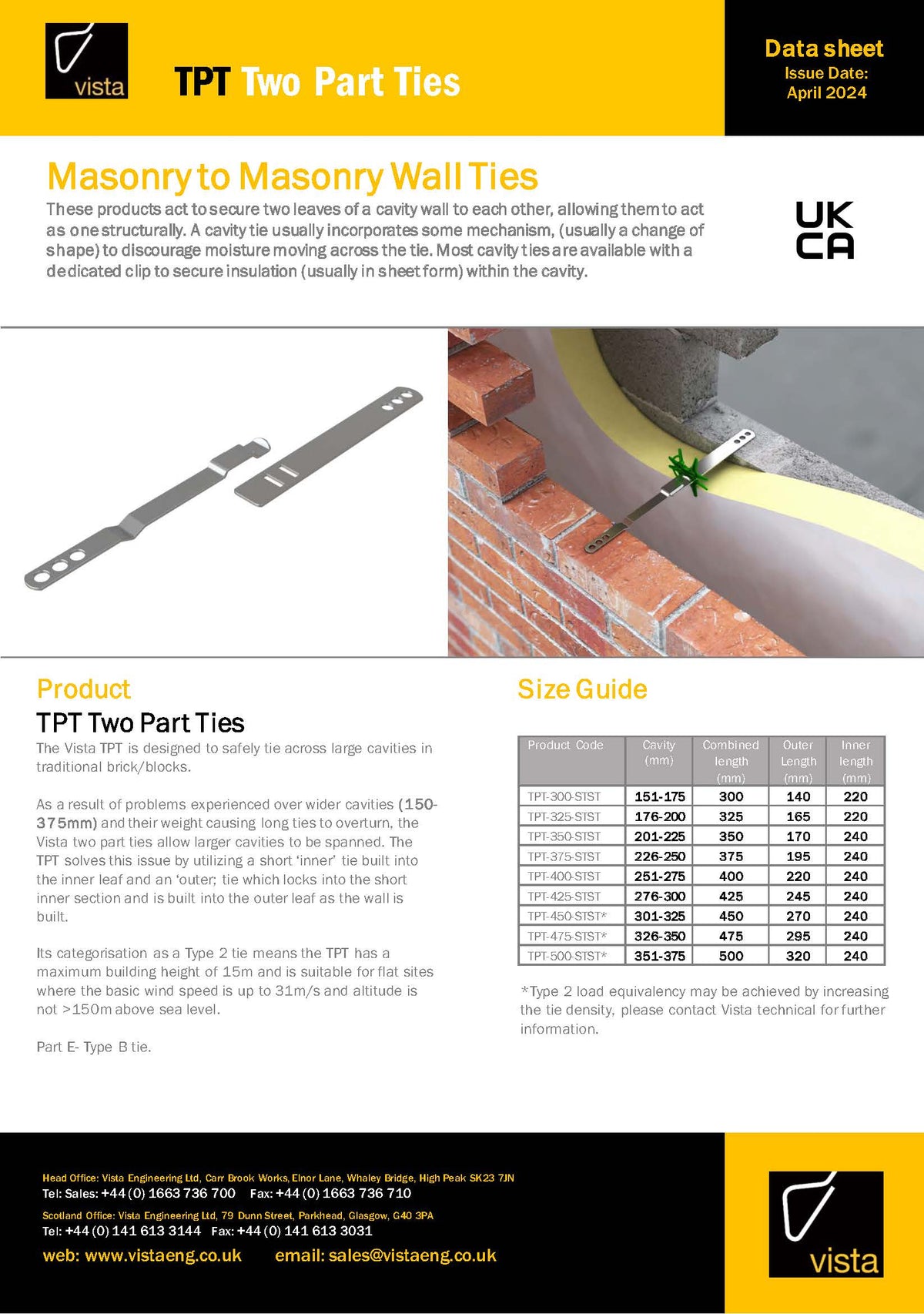

For additional information see the Data Sheet attached above.
